Shielded Single Lead Wire Ecg Leadwire Cable Snap Ecg 1 Lead -EC201S-001

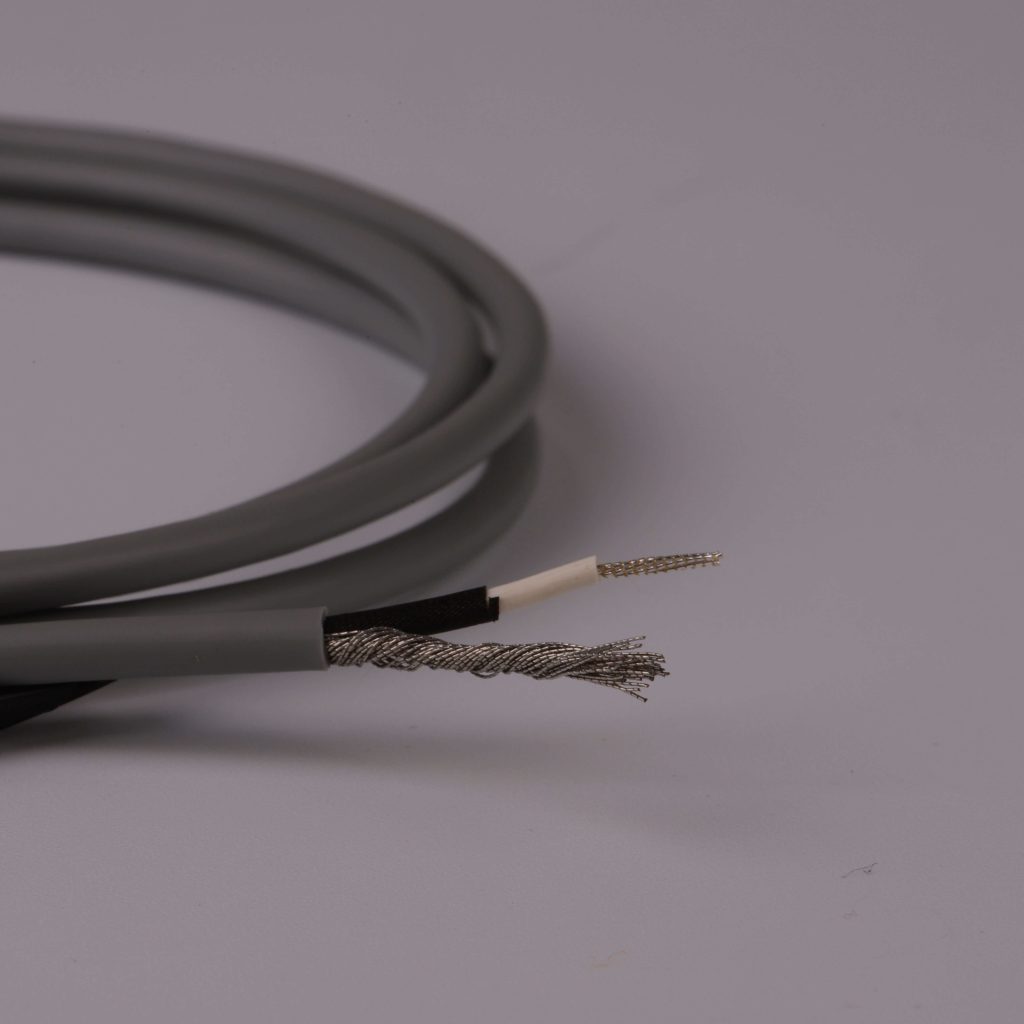

single lead wire ECG cable EC201S-001
single lead wire ECG cable EC201S-001
EC201S-001 cutting diagram
EC201S-001 cutting diagram





technical specification

Items Specification
Products name
ModelEC201S-001
ConductorMaterialTinned or Silvered Tinsel+KEVLAR
Specification7/0.25+200D KEVLAR
InsulationMaterialPP
Nom.Thickness0.18
Nom.O.D.ø1.30士0.05
ColourWhite
Conducting LayerMaterialSemiconductive PVC
Nom.Thickness0.175
Specificationø1.65士0.05
ColourBlack
WrapMaterialN/A
FillerMaterialN/A
ShieldMaterialTinned or Silvered Tinsel
Specification30士3/0.16
Coverage>95%
JacketMaterialTPU (5040)
Nom.Thickness0.33
Nom.O.D.ø2.80士0.10
ColourGray
