3 Core TPU Jacketed Enamelled Wire 30 AWG
Engineering ultra-flexible acoustic systems, compact wearable diagnostics, and premium patient monitoring probes requires balancing microscopic cross-sectional dimensional footprint with endless mechanical flex life. As an agile, ISO 13485 certified medical cabling pioneer, Conectmed (YQF Medical Cable) custom-manufactures high-performance 3 core TPU jacketed enamelled wire (Model: CU203N-2.0) directly on wholesale master spools. Engineered at a miniature 30 AWG profile (OD 2.0mm), our multi-conductor enamel-covered copper strands bypass standard plastic insulation thickness constraints to deliver dynamic multi-channel data routing under tight space limits.

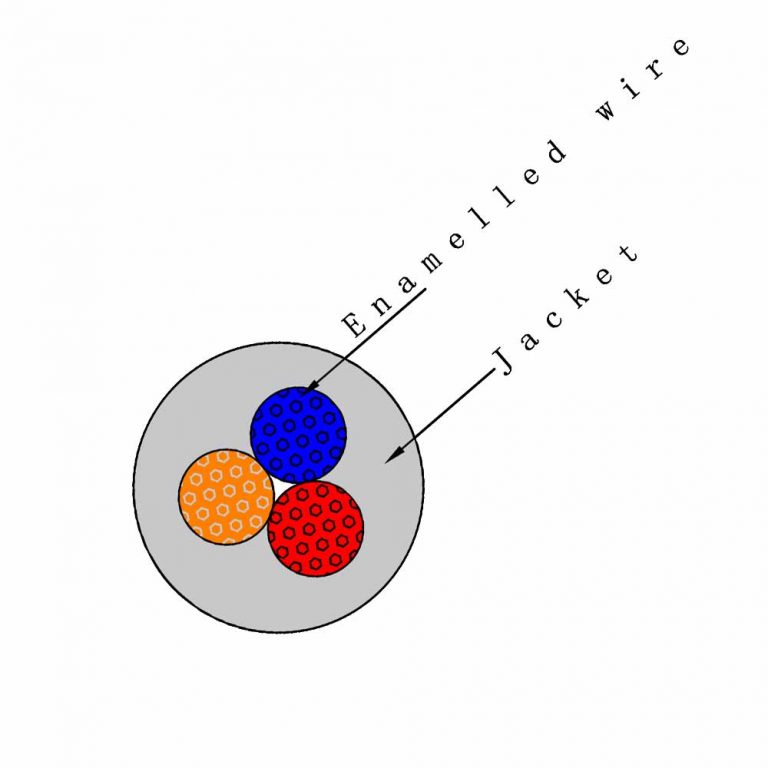

technical specification
| Items | Specification | ||
| Products name | 30 AWG 3 Core Enamel-Covered Conductor TPU Jacket OD 2.0 | ||
| Model | CU203N-2.0 | ||
| AWG | 30 AWG | ||
| Conductor | Material | Enamel-Covered | |
| Specification | 10/0.08EC | ||
| Color | Primary/Blue/Red | ||
| Quantity | 3 Core | ||
| Jacket | Material | TPU (5040) | |
| Nom.Thickness | |||
| Nom.O.D. | ø2.0士0.10 | ||
| Colour | Gray | ||
💡 Technical Advantages of Custom Jacketed Enamelled Wire Series:
Standard multi-core extruded PVC or FEP cables often create a stiff, bulky cross-section that easily kinks and cracks when embedded inside compact medical housings or miniature earphone tethers. Conectmed re-engineers this micro-conduction architecture:
* Space-Saving Enamel Insulation: Every individual core features 10 strands of ultra-fine 0.08mm copper wire coated in a high-dielectric continuous enamel film (Primary, Blue, Red). This configuration eliminates bulky inner polymer jackets, giving you 3 independent lines packed inside a microscopic footprint.
* Premium 5040 Medical TPU Jacket: Outer shell is extruded in premium matte-finish biocompatible TPU (5040 compound), guaranteeing an incredibly smooth, low-friction texture that survives aggressive clinical disinfection while supporting an extreme flex-life over 20,000 bending cycles.
* Direct Factory Wholesale Spools: By operating our own precision copper drawing, enameling, and high-speed jacket extrusion lines under one roof, we guarantee unmatched center-to-center geometric concentricity and long-term signal safety.
🛑 Stop Sourcing Stiff, Bulky Standard Wires that Restrict Your Wearable Hardware Designs.
Partner Direct with an Agile, ISO 13485 Certified Jacketed Enamelled Cable Extrusion Expert.
If this 30 AWG 3 core jacketed enamelled wire specification (10/0.08EC, OD 2.0mm) matches your active medical probe, micro-acoustic transducer, or smart wearable electronic blueprint, fill out our technical form below, define your target annual volume forecast, and contact the Conectmed engineering team to request your Free Factory Bulk Samples today!
(Note: Looking for a tighter cross-section? You can also explore our secondary 2 Conductor 30AWG Jacketed Enamelled Wire setup to evaluate dual-channel configurations.)
