4 core RAW MEDICAL ESU CABLE ES104X
Engineering dependable electro-surgical unit (ESU) generators and high-frequency electrosurgical pencils requires flexible high-voltage isolation under aggressive clinical environments. As an ISO 13485 certified medical cabling expert, Conectmed (YQF Medical Cable) custom-manufactures a comprehensive portfolio of raw medical ESU cables directly on wholesale master spools. While we supply the standard commercial 3-core electrosurgical cable with commodity PVC/TPE jackets for high-volume disposable applications, our facility specializes in scaling high-performance 4 core raw ESU cables (Model: ES104X) engineered for advanced signaling handpieces alongside elite reusable autoclavable silicone-jacketed configurations.

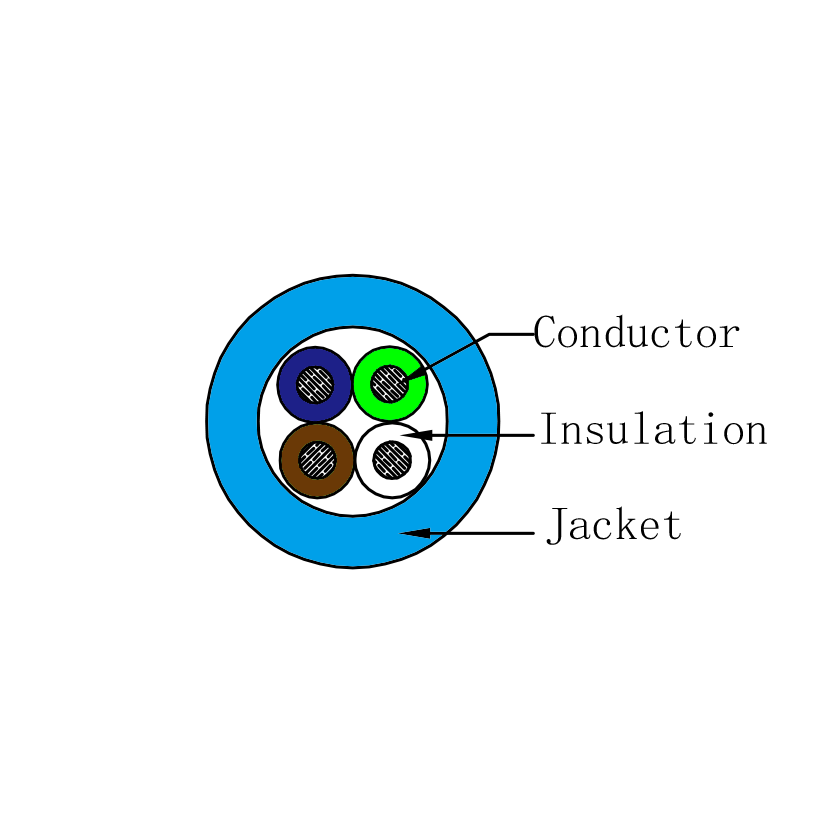

technical specification
| Items | Specification | ||
| Products name | |||
| Model | ES104X | ||
| Conductor | Material | Bared copper | |
| Specification | 19/0.127士0.08 | ||
| Insulation | Material | HDPE MEDICAL GRADE(600V,70°C) | |
| Nom.Thickness | 0.27 | ||
| Nom.O.D. | ø1.15士0.05 | ||
| Colour | Brown,White,Green,Blue | ||
| Jacket | Material | PVC 65士5A | |
| Nom.Thickness | 0.76 | ||
| Nom.O.D. | ø4.32±0.15 | ||
| Colour | Blue(PANTONE 285C) | ||
💡 Conectmed Electrosurgical Cable Manufacturing Matrix: Disrupting Market Standards
The market is flooded with generic 3-core disposable electrosurgical wires that quickly fail under unexpected RF surges or melt during high-speed sensor overmoulding. Conectmed resolves these engineering constraints with cross-functional processing capabilities:
1. Premium 4-Core Advanced Series (Model: ES104X):
While 3-conductor lines are the commercial baseline, our customized 4-core raw ESU cable is precision-engineered for next-generation smart surgical pencils, embedding an extra telemetry/feedback channel within a miniature, ultra-flexible low-profile layout.
2. High-Volume Disposable 3-Core Lines:
Fully customized extrusion utilizing clinical-grade medical PVC or high-elasticity Thermoplastic Elastomer (TPE) jackets. Engineered for high-speed automated termination stripping and low-cost injection overmoulding lines.
3. Heavy-Duty Reusable Autoclave Series:
For premium reusable ESU handpieces, we extrude continuous-vulcanized solid Silicone Rubber jackets paired with ultra-tough internal Fluoropolymer (Teflon PTFE/FEP) core insulations. These leads withstand over 500+ repetitive 134°C high-pressure steam sterilization cycles without insulation breakdown or microphonic jacket stickiness.
