6 leads ECG Flat Ribbon ecg cable-EC206S-003

This 23AWG  6 core ribbon cable is intended for 6 lead ecg cable assembly.

The Conductor are Tin Plated Tinsel ,which greatly enhance the strength of the cable,and improved the Triboelectric noise performance.

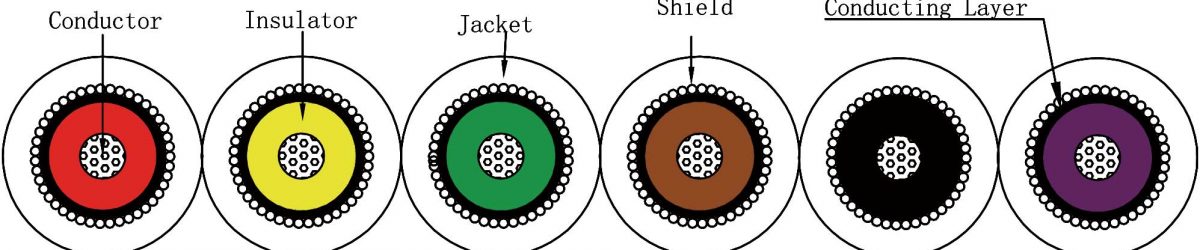

6 Flat ECG cable-cutting diagram





technical specification



ModelEC206S-003
Conductor MaterialTinned Tinsel+KEVLAR
 Specification7/0.23+200D KEVLAR ( 23 AWG )
 Insulation MaterialHDPE
 Nom.Thickness0.34
 Nom.O.D.ø1.2士0.05
 ColourWhite/Black/Red/Yellow/Brown/Purple
 Conducting Layer MaterialSemiconductive PVC
 Nom.Thickness0.1
 Specificationø1.5士0.05
ColourBlack
 Shield MaterialTinned copper
 Specification50士3/0.08TC
 Coverage>90%
 Jacket MaterialPVC
 Nom.Thickness0.72
 Nom.O.D.ø3.25士0.10/19.5士0.5
 ColourWhite
