ECG Connector for ECG Cables

Different Brands EGG monitors may have different ECG connectors and ECG Adapters.And some brands share the same connector ，plug or Adapter .This may confuse end user. This page will make a summary for the ECG connector,plug and adapter for different brands with image,short description and some main specifiation .As an upstream ekg trunk cable factory and one-Piece series ecg lead wires factory in China,we are registered medical cable manufacturer for many of  the brands mentioned  below (we supply raw medical cable without connector or with connector but unsterilised to their OEM assembly manufacturer.

In this article,you will find different or silimilar ECG connector ,Plug and Adpater based on different types of ECG cable as following:

  • One-Piece series ecg lead wires
  • ECG Trunk Cable
  • ECG Lead Wires
  • ECG Electrode
  • Telemetry Holter Cable
  • EEG Electrode Wire


ECG Connectors for one-piece series ecg lead wires

Compatible

Brand

 Plug Compability

Code

 Specification

Schiller

Schiller 11 pin one-piece ecg connector

Dash PRO 4000, Dash PRO 3000, Dash PRO 2000, Dash 1000,

Eagle Systems, MAC-Lab, Solar 9500, Solar 8000.

Solar 3000, Tram 100, Tram 200, Tram 300, Tram 400, Tram 500,

Tram 600, Tram 800

 ECC0030

11 Pins
Datex

AS/3, CS/3, S/5, Cardiocap 1, Cardiocap 2 , Light Monitor ,

Satlite plusS5

 ECC0040

10 Pins
Philip PHILIPS 8 pin ECG connector

43100A,43110A,43120A,78354C,78834C,M1001A,M1002A,

M1165A,M1166A,M1167A,M1175A,M1205A,M1264A,M1275A,

M1280A,M1722A/B,M2601A,M3000A,M3001A,M2/M3

 ECC0050

12 Pins

Philips

 PHILIPS 8 pin ECG connector

43100A/43110A/43110M/43120A/MC Defib,43200A Portable,

M3500B,77000AC/77020A,77010ACSonos/AC/AR,77025A,

77030A,77035A,77040A,78208A,78210A,78330A,78331

A,78332A,78333A,78341A,78342A,78345A,78346A,78351T,

78352A/C,78353A/B,78354A,78532A/B,78534A/B/C,78619A,

78620A,78660A/B,78661A/B,78670A,

 ECC0051

8 Pins
Spacelabs Spacelabs 17 pin ecg connectors

Ultraview 90701/90303/90305/90308/90309/90385

 ECC0060

17 Pins
Nihon Kohden Nihon Kohden 12 pin ECG connector

BSM-2300 lifescope I, BSM-4100 lifescope P

BSM-5100 lifescope A, BSM-9510 lifescope M

BSM-9800 lifescope S

 ECC0080

12 Pins
MEK MEK DB9 ECG connector

MP 1000, MP 600, MP 500

 ECC0100

DB9
Mindray Mindray 12 pin ECG Connector

BeneView T1, BeneView T5, BeneView T8, Beneheart D6,

DPM6, DPM7, MEC 1000, MPM, PM5000, PM6000,

Passport 12, Passport 8, T8, cPM 12, iPM-9800

 ECC0090

12 Pins

M&B

 M&B 6 pin ECG Connector

ECC0110

6 Pins

Kontron

 Kontron 12 Pin ECG Connector

7000, 7135, 7135B, 7141, 7210, 7250, 7251, K2000, KAAT,

Kolormon, Micromon, Minimon, Supermon, Vitalmon

 ECC0120

12 Pins

Schiller

Schiller 12 pin ECG connector

Argus LCM, Defigard 4000, Defigard 5000

 ECC0130 12 Pins

Bruker

 Bruker 12 pin 3 leads ECG Connctor

Sm784, SM785

 ECC0170

12 Pins

3-Lead

Colin

 Colin 6 Pin ECG Connector

DRE ASM-5000 (Cable only)

Colin MC039-55

 ECC0181

6-Pin
Colin Colin 6 pin Male ECG Connector BP-88, BP-306 ECC0180 6 Pins

Creative

Spurt

Biolight

 Creative Spurt Biolight 6 pin ECG Connector

Creative PC9000S,PC9000,UP6000, Biolight M12

 ECC0190 6 Pins

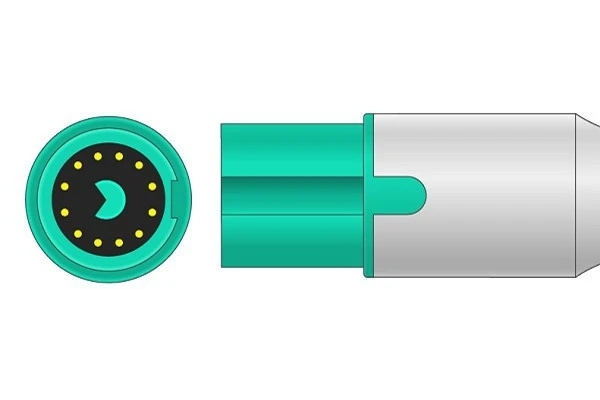

Fuku Denshi Fuku Denshi 12 Pin ECG Connector

Mindray Dynascope DS-5100, Dynascope DS-5100E,

Dynascope DS-5300W, Dynascope DS-5400,

Dynascope DS-7001; Datascope Expert

 ECC0220 12 Pins

AAMI

 AAMI 6 Pin ECG Connector

AAMI: All

ATL: 800, 800 Plus, 800Plus, Apogee, CX ATL Ultrasound,

CX200, CX400, HDI 9/200, HDI 9/2000, Interspec Cardiology XL,

Mark IV, Mark Vii, Ultramark 4/5/7/9

Abbott: EX-50, Lifecare 5100, Lifecare 5200

Advanced Instrumentations PM-1000, PM-1000EX

American Optical: 26125, 33167, 5260, 5330, Pulsar 4

Carewell: CPM-8000; Conmed: 90347

Contec: CMS 6000, CMS 6800, CMS 8000, CMS 9000

Nellcor: C-LOCK, N-1000, N-200, N-250, NPB-3900, NPB-4000

Criticare 1100, 2200, 504US, 504USP, 506, 507, 507E, 507ELC2,

507S, 508, 602-4B, 602-4USP, 8100, 8100E, 8100EP, Poet 2,

Scholar, nCompass, nGenuity 8100E

DIN StyleAll

DRE: Waveline EZ MAX

Datex Ohmeda: enGuard CM5

Digicare: LW600

Dixtal: DX 2022, DX 2515

Air Shields: HRRM-71-1, HRRM-71-2, II, III, Porta-Fib I,

Porta-Fib II, Porta-Fib III, System 5 (New), System 6 (Neonatal)

Draeger: Vitalert 2000, Vitalert 3000

Edan: M50, M8, M80, M8A, M8B, M9, M9A

GE Healthcare > Corometrics556

Dinamap: 8100T, 8700 Series, 8700/9700, 9700 Series,

MPS Select, Pro 1000

Goldway G40, UT4000A, UT4000Apro, UT4000B, UT4000C,

UT4000F, UT4000F Pro, UT4800, UT6000A, UT6000F

Guthan: 1000

Infinium: Infitron II, Omni, Omni II

Interspec (Irex) (JandJ): Cardiology XL, Mark IV, Mark Vii,

Ultramark 4, Ultramark 4 Plus, Ultramark 5, Ultramark 7,

Ultramark 9

Invivo: 101, 102, 200, 300, 360SL, 450SL, 521A,

Escort 100, Escort 101, Escort 102, Escort 200, Escort 300,

Millennia 3500, PortaPak 1000,

PortaPak 80, PortaPak 90, PortaPak 90/1000, Prism

Ivy Biomedical: 101, 101 (before 1989), 3000, 402, 700, 7800,

Cardiac Trigger Monitor 3150

LSI: 261, LS5

Cardell: 9403V, 9405, MAX-12 Duo HD, Max-1

Datascope: DPM4, DPM5, MEC 1000, MEC 1200, MEC 200,

MEC 2000, PM 7000, PM 8000, PM 9000

Nihon Kohden: 7102A, BSM-7102A, BSM-7300A, BSM-8108A,

BSM-8301A, BSM-8302A, BSM-8500A, BSM-8502A, BSM-8800A,

Life Scope 12, Life Scope 6, Life Scope 7, Life Scope 8, Life Scope 9,

MU-831RA, OEC-6102A (s/n>20156), OEC-6105A (s/n>20226),

OEC-7102A, OEC-8108A, TEC 5531E, TEC-5200A (s/n>20421),

TEC-7100A, TEC-7200A, TEC-7300A

Novametrix: 902, 903, 910, Life Defense 1

Colin: BP-308, BP-408, CBM3000, M20, M30, MS20

PPG: Guardian 1001, N1001

PaceTech2100, 2200, 4000, 4100, MiniMax 4000CL, Minipack 300,

Minipack 3000, Minipack 3000/3100, Minipack 3100,

Modular/4100CL, Vitalmax 2100, Vitalmax 2200, Vitalmax 4000,

Vitalmax 4000 Modular, Vitalmax 4000CL, Vitalmax 4100,

Vitalmax 4100CL, Vitalmax 800 Plus

Philips: M3921A A1, M3923A A1, M3925A A1, M3927A A3,

M3929A A3, iE33 xMatrix Ultrasound CX50

BCI: 3101, 3404, 6100, 6200, 9100, 9200,

Advisor, Autocorr, Autocorr: Surgivet

Spacelabs: 500, 600, 67112, 900, 90300, 90303, 90303B,

90400, 90408, 90425, 90428, 90431, 90432, 90600, 90603A,

90700, 90701, 90721, 90724, AriaTele, Medic 3, Medic 4,

Medic 5, Medic 6, PC Bedside, Series 600, Series 900

Physio Control: 1440/R, Lifepak 10, Lifepak 5, Lifepak 6,

Lifepak 6S, Lifepak 7, Lifepak 8, Lifepak 9, VSM-1ESF, VSM-2,

VSM-2ESF, VSM-3

Venni: VI-1060P

Welch Allyn: 1500, Atlas, PIC 30, PIC 40, PIC 50,

Propaq 206 EMPSC, Ultra Smart

Zoll: D900, E Series, M Series, PD1200, PD1400, PD1600,

PD1700, PD2000, R Series

 ECC0291 6 Pins

Compatible

Brand

PlugCompatible Models

 Code

Specification

Schiller

Schiller No Resitance ECG cable Plug



AT3/ AT6/ CS6/ AT5/ AT10/ AT60

EKK001

No resistance

AT1/ AT2/ AT2 Plus/ AT4

EKK001

10K resistance

BurdickBurdick ECG Plug No ResistanceE350, E350I, E550, E560, EK10, Eclipse LE, Elite, Elite IIEKK002

No resistance

Nihon Kohden

Nihon Kohden ECG Plug

9130

EKK003

No resistance

Cardiofax 6151/6353/ Cardiofax EKG 8270/ 8350/8370/

8420/ 8423/ 8450/ 8453/ 8820/ 8823/ 8830

EKK003

4.7K resistance

Nihon Kohden ECG plug

BSM-2301,BSM-2353, BSM-5100,

Supply Code, No. K901 Article, No.BJ-900P

EKK003
EdanEdan ECG plug

DRE True ECG-1

Edan SE-1010PC, SE-12, SE-12 Express, SE-1200, SE-3,

SE-601A, SE-601B, SE-601C, ST-1212

Datascope DECG-03A

Nihon Kohden BSM-2301K

Spacelabs SL6

EkK004
MindrayMindray 1K Resistance ECG plug

Bene View (12-ld module ); Oen pln 0010-30-42721

(AAMI std)

EkK005

1K resistance

Spacelabs

Spacelabs 1 K Resistance ECG plug

90367, 90369, 90496, 91496, Ultraview

EkK006

1K resistance

Bosch

Cambridge

Custo-med

DEGO

Hellige

Siemens

Bosch Cambridge Customed DEGO Hellige Siemens compatible ECG Plug

Bosch: 603D, 603ER, 603S, 606

Cambridge: CM6000, CM6400

Custo-med: Custocard

DEGO: Cardiomed 3

Hellige: EK36, EK41, EK43, EK53, EK56, EK403, EK413,

EK512, EK512E, EK512P, Cardiosmart, CardioSys, Corna

Siemens: Cardiostat1/3T/703/710/31/31S Cardina C,

Cardirex 3T/4/6T/62, Cathcor, Megacard Elema

A/B, R, R/E, Mingodoc, Mingocard 3/4/7,

Mingograph 4/ 62 /81,Mingograph 82 / 740,

Mingolog 7, Mingophon 3/7/310/410/420/710/720,

Miracard 1,Sirecard440/440S/460/460S/740

Siereg, Sirecard 803, Sirecust 701Von

Berg: Bioset3500/3600/3700 /6000/800

EkK008

Burdick

Quinton ATRIA

Burdick Quinton ATRIA compatible ECG plug

BURDICK (QUINTON): Eclipse 4, Eclipse 400,Eclipse 8,

Eclipse 800, Eclipse 850, Eclipse 850i, Eclipse Plus,

ATRIA: ATRIA PLUS, ATRIA3000

EkK01210K resistance

Fukuda Denshi

 Fukuda Denshi 1K Resistance ECG plug

CardiMax FX-7202, CardiMax FX-7402, CardiMax FX-7101,

CardiMax FX-7102, FCP 2155, FCP 2201, FCP 4101, FCP 4101A,

FX-101, FX-102F, FX-3010, FX-328UY

EkK0141K resistance

KENZ

KENZ O or 4.7K Resistance ECG plug

Kanz PC-103, PC-104, PC-106 Cardioline remco;

delta 1 plus, delta 3 plus, delta 60 plus

EkK015

No/ 4.7K

Resistance

KENZKENZ No Resistance ECG plugECG 108/1/110/1203, 1205EkK016No resistance
MarquetteMarquette 10 K Resistance ECG Plug

MAC 1000, MAC 1100, MAC 1200, MAC 1600, MAC 2000,

MAC 3500, MAC 400, MAC 500, MAC 600, MAC 800,

Microsmart M

EkK01710K resistance

MEDTRONIC

PHYSIO CONTRO

 MEDTRONIC PHYSIO CONTRO 10 K Resistance Plug

Lifepak 11, Lifepak 12, Lifepak 15, Lifepak 20

EkK01910K resistance
Mortara Burdick Mortara Burdick 1K Resistance ECG plug

ELI 10, ELI 100, ELI 200, ELI 50,

Landscape, Portrait, XScribe DOS

EkK0201K resistance
PhilipsPhilips 20 K Resistance ECG Plug

200, 200i, Agilent 300PI, Agilent 300i, M1770A, M1771A,

M1772A, Pagewriter 100, Pagewriter 200, Pagewriter 300pi,

Pagewriter TC20

EkK02520K resistance

Nihon Kohden

Zhonglian JianYi

Nihon Kohden Zhonglian JianYi No Resistance ECG plug

5151A, 5403A, 5503A, 5504A, 6151, 6151A, 6151B, 6306A,

6353, 6353A, 6543A, 6851, 8110, 8330, 8330A,

Cardiofax, Escape 12

EkK027No resistance

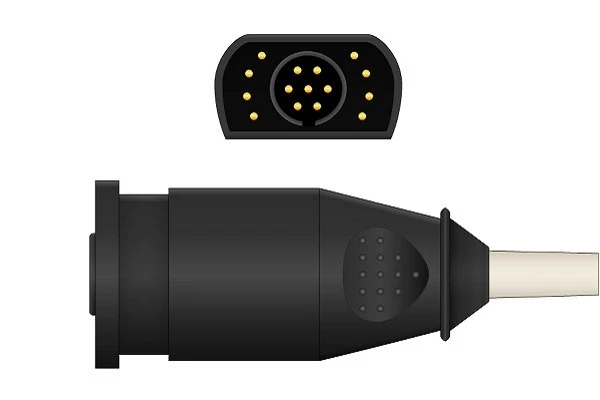

ZollZoll 10 K Resistance ECG plugE Series, M SeriesEkK02910K resistance

ECG Connector for ECG Trunk Cable

As an ecg trunk cable manufacturer,we are glad to clarify a fact that a ecg cable 12 pins use a 10 leads(just as what are common know a 12 lead ECG monitor system is using a 10 lead ecg cable

Compatible Brand

PlugAdapterDecription

Code

Specification

Nihon Kohden

Nihon Kohden ECG cable 12 pin Connector-Plug

Nihon Kohden ECG trunk Cable Adapter 12 pin

3-Lead

6-Lead



ECCF030

12 Pins

GE MarquetteGE Marquette ECG trunk cable Connector PlugGE Marquette ECG trunk cable connector-Adapter 11 pin

3-Lead

5-Lead



ECCFD040

11 pins

PhilipPhilip 12 pin ECG Connector-PlugPhilip 12 pin ECG trunk cable -Adapter

3-Lead

5-Lead

ECCFM060

12 Pins

Philips

Philips 8 pin ECG trunk cable connector plugPhilips 8 pin ECG trunk cable connector Adapter

3-Lead

5-Lead



ECCFJ050

8 Pins

BionetBionet 7 pin ECG trunk cable connector PlugBionet ECG trunk cable Adapter

3-Lead

5-Lead

ECCFL090

7 Pins

Creative

Spurt

Biolight

Biosys

 Creative Spurt Biolight Biosys ECG trunk cable PlugCreative Spurt Biolight Biosys ECG trunk cable Adapter

3-Lead

5-Lead

ECCFC120

6 Pins

Colin7-1 Colin ECG trunk cable connector -PlugColin ECG trunk cable connector Adapter

3-Lead

6-Lead

ECCFH110

6 Pins

7-2 Colin ECG trunk cable connector Plug
OhmedaOhmeda 10 pin ECG trunk cable-PlugOhmeda 10 pin ECG trunk cable-Adapter

3-Lead

5-Lead

ECCFA150

10 Pins

Siemens

Draeger

Siemens draeger ECG trunk cable-PlugSiemens Draeger ECG trunk cable connector-Adapter

3-Lead

5-Lead

ECCFK170

16 Pins

Multi Link

Siemens

Siemens 10 pin ECG trunk cable-Plug Siemens Adapter

3-Lead

5-Lead

ECCFG180

10 Pins

Mindray

Mindray 12 pin ECG trunk cable-Connector Plug

Mindray ECG trunk cable-adapter

3-Lead

5-Lead

ECCFG20012 Pins

AAMI

Nihon Kohden

Nellcor

Mindray

Spacelabs

Colin

IVY

GE Medical

Critikon

AAMI Shared Plug

6 pin Din style-Adapter

3-Lead

5-Lead



ECCFC010

6 Pins

Din style

6 pin LL stype Adapter

3-Lead

5-Lead

ECCFL070

6 Pins

LL style

6 pin Philips style adapter

3-Lead

5-Lead

ECCFA080

6 Pins

Philips style



Compatible

Brand

 Plug Adapter Description

 Code

 Specification

Nihon Kohden

Nihon Kohden 1K resistance ECG plug

Nihon Kohden ECG adapter

   EZK001

1K resistance
Marquette Marquette ECG Plug

Marquette ECG Adapter

Micro Smart, MAC 500/1100/1200/1200 ST

 EZK003

10K resistance
GE medical GE medical ECG plug GE medical ECG adapter

Eagle,Solar,Dash,Tram, MAC Lab Cath Lab System,

Datex-Ohmeda S/5 FM

 EZK004

No resistance

Spacelabs

 Spacelabs ECG plug

Spacelabs ECG adapter

 TRU-LINK Accessories EZK007

1K resistance

Spacelabs

 Spacelabs ECG plug

Spacelabs ECG adapter

 90496 Ultraview Module EZK010

10K resistance

Medtronic

Spacelabs ECG plug

Spacelabs Adapter

Medtronic Physio Control Lifepak12

 EZK012

10K resistance

ECG Connector for Reusable  Leadwire

Compatible Brand

ConnectorDecription

Code

Nellcor

BCI

CSI

Nihon Kohden

Nellcor BCI CSI Nihon Kohden ECG leadwire Connector

3-Lead

5-Lead

6-Lead

ECZ010
Nihon KohdenNihon Kohden ecg leadwire connector

3-Lead

5-Lead

6-Lead

ECZ020
GE MarquetteGE Marquette ECG leadwire connector

3-Lead

5-Lead

ECZ030

Siemens

Siemens ECG leadwire connector

3-Lead

5-Lead

ECZ040
Fukuda DenshiFukuda Denshi ECG leadwire connector

3-Lead

5-Lead

ECZ050

Draeger

Draeger ECG leadwire Connector

3-Lead

5-Lead

ECZ060
PhilipsPhilips ECG leadwire connector

3-Lead

5-Lead

ECZ070
PhilipsPhilips ECG leadwire connector

3-Lead

5-Lead

ECZ071
DatexDatex ECG leadwire connector

3-Lead

5-Lead

ECZ080

Din style

Din style ECG leadwire connector

3-Lead

5-Lead

7-Lead

10-Lead

ECZ090
ConmedConmed ECG leadwire connector

3-Lead

5-Lead

ECZ110
ColinColin ECG leadwire connector

3-Lead

6-Lead

ECZ111

ECG Connector for Disposable  Leadwire



Compatible Brand

ConnectorDescription Code
PhilipsPhilips Dispossable ECG leadwire connector

3-Lead

5-Lead

EZ010
Nihon KohdenNihon Kohden Dispossable ECG leadwire connector

3-Lead

6-Lead

EZ020
MarquetteMarquette dispossable ECG leadwire connector

3-Lead

5-Lead

EZ030
DragerDrager dispossable ECG leadwire connector

3-Lead

5-Lead

EZC40

ECG Connector for RADIOLUCENT ECG LEAD WIRES



Regular ECG/ EKG leadwires and electrode shall be removed during X-ray and MRI scanning as it would affect the image quality, resulting in lengthening the operation time and interrupting ECG monitoring.



However, radiotransparent leadwires (RTL) can be applied with radiotransparent electrodes during X-ray and MRI scanning as it can monitor ECG continuously without influencing the image quality.



Compatible BrandConnectorLeadsDescription Code

Biosys Datascope IVY

Fit for din type ECG

leadwires

Biosys Datascope IVY Fit for din type RADIOLUCENT ECG leadwires ConnectorBiosys Datascope IVY Fit for din type RADIOLUCENT ECG leadwires Pinch1.2m/ 1.5m/ 1.8m, clipXECZ001010

Philips

Fit for AAMI ECG

leadwires

Philips Fit for AAMI ECG leadwiresPhilips Fit for AAMI ECG leadwires Pinch1.2m/ 1.5m/ 1.8m, snapXECZ002010

Datex-Ohmeda

Fit for DB type ECG

leadwires

Datex-Ohmeda Fit for DB type ECG leadwires Connector Datex-Ohmeda Fit for DB type ECG leadwires Pinch1.2m/ 1.5m/ 1.8m, snapXECZ003010

CONMED

Fit for Lock tye 2 Pin

ECG leadwires

CONMED Fit for Lock tye 2 Pin ECG leadwires ConnectorCONMED Fit for Lock tye 2 Pin ECG leadwires Pinch1.2m/ 1.5m/ 1.8m, snapXECZ004010

Neusoft Medical

Fit for banana plug

Neusoft Medical Fit for banana plugNeusoft Medical Fit for banana plug Pinch1.2m/ 1.5m/ 1.8m, snapXECZ005010

GE-Marquette

Fit for VS type ECG

leadwires

GE-Marquette Fit for VS type ECG leadwires ConnectorGE-Marquette Fit for VS type ECG leadwires Pinch1.2m/ 1.5m/ 1.8m, snapXECZ000160

Compatible Brand

ConnectorDecription

Taijia Code

Philips Medical

IntelliVue Telemetry

Philips Medical IntelliVue Telemetry



3-Lead

5-Lead

EZC010

Philips Medical Legacy

M2600A/ M2601A

M2636 Transmitters

Philips Medical Legacy M2600A M2601A M2636 Transmitters

3-Lead

5-Lead

EZC011

GE Marquette

ApexPro Fh

Telemetry Patient Net

Wireless Telemetry

Systems

GE Marquette ApexPro Fh Telemetry Patient Net Wireless Telemetry Systems

3-Lead

5-Lead

6-Lead

EZC020

GE Healthcare

ApexPro Telemetry

GE Healthcare ApexPro Telemetry

6-Lead

EZC030

Mindray

TMS-6012,TEL-100

Mindray TMS 6012 TEL 100

3-Lead

5-Lead

EZC040

You May also need ECG trunk cable and single leads for ECG cable assebmly and repair?

Share to
Share on facebook
Facebook
Share on google
Google+
Share on twitter
Twitter
Share on linkedin
LinkedIn
Share on tumblr
Tumblr
Share on pinterest
Pinterest
Share on reddit
Reddit
Send Me Free Samples
Contact Form
