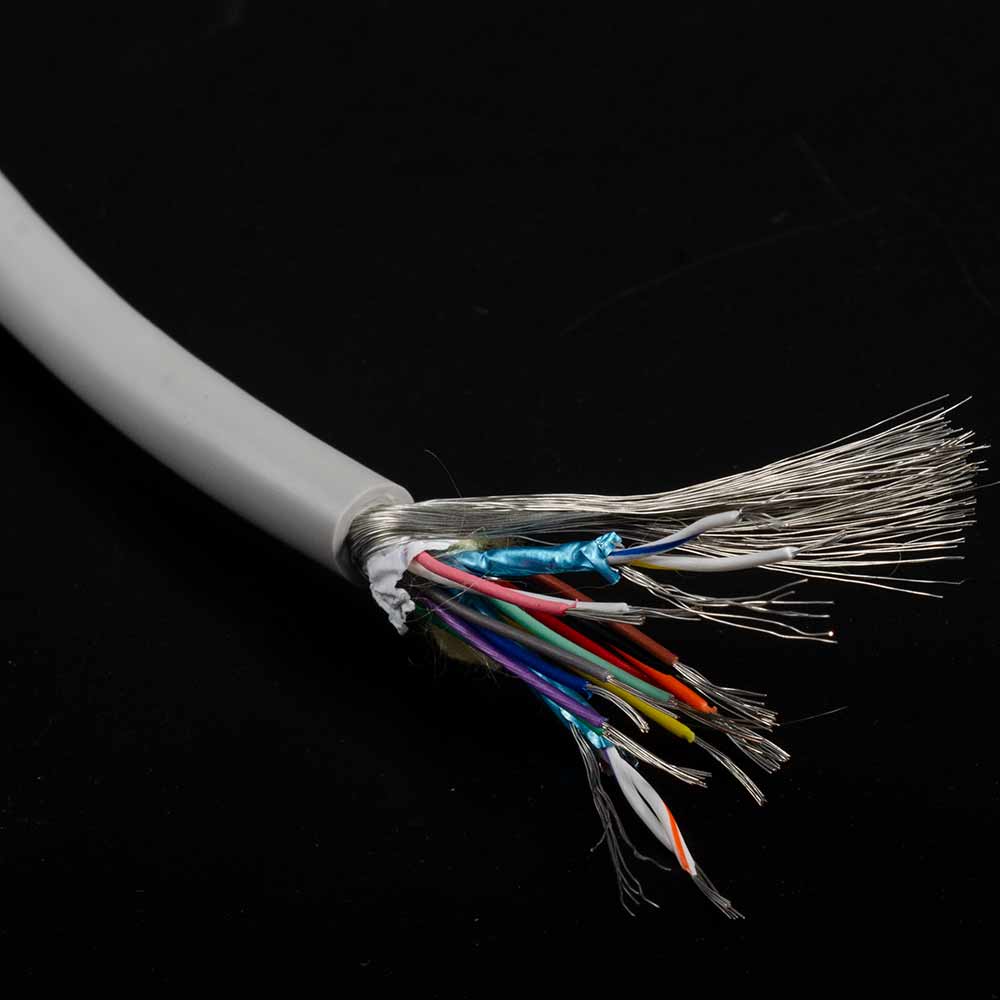

Custom 16 conductor shielded cable 28AWG 12C and 32AWG 2P TPU Jacket
The 16 Core Cable Shielded With 32 AWG *2 TSP Twisted Pair (with drain wire and AL Foil shield),And 12 Core 28 AWG. Medical grade TPU Jacket and Diameter 6.0mm
technical specification
| Model | S216S | ||
| Components | 28 AWG * 12 C | Twisted Pair 32AWG *2P | |
| Conductor | Material | Tinned copper | |
| Specification | 7/0.127TC士0.008 | 7/0.08TC士0.008 | |
| Insulation | Material | HDPE | |
| Nom.Thickness | |||
| Nom.O.D. | ø 0.70 mm | ø 0.7 mm | |
| Colour | Blk/Brown/Red/Orange/Yellow/Green /Blue/Purple/Grey/wht/Pink/lite Blue | Wht/Yellow&wht Blue ;Wht/Orange & wht/Purple | |
| Inner Shield | Material | N/A | AL Foil |
| Coverage | N/A | ||
| Drain Wire | Material | N/A | 7/0.127 Tinned Copper |
| Filler | Material | Kevlar | |
| Wrapper | Material | PTFE Tape | |
| Outer Shield | Material | Tinned copper | |
| Specification | Spiral shield | ||
| Coverage | ＞90% | ||
| Jacket | Material | TPU (5040) | |
| Nom.Thickness | |||
| Nom.O.D. | ø6.0士0.15 mm | ||
| Colour | Gray White | ||
