18 LEAD SHIELDED RAW ECG CABLE EC218s

ECG cable EC218S
ECG cable EC218S

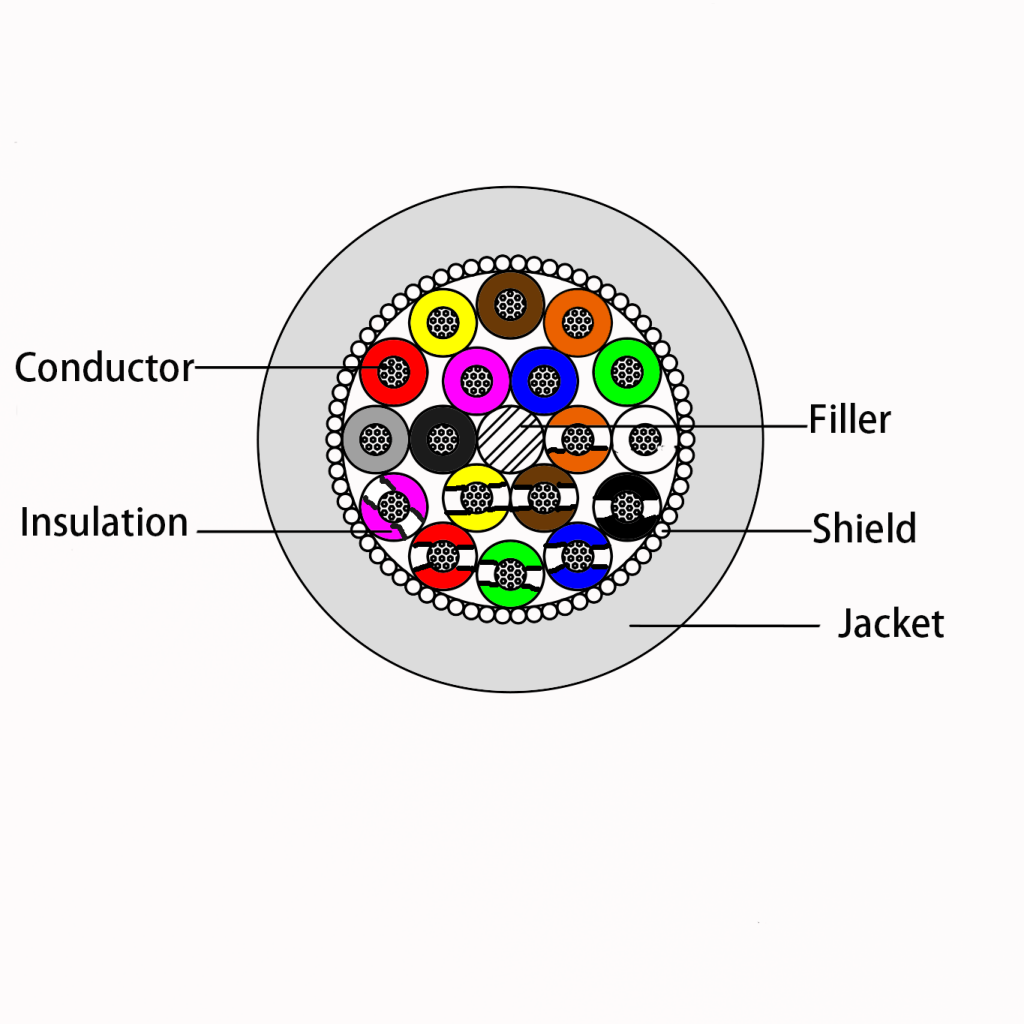

ECG cable EC218S cutting diagram
ECG cable EC218S cutting diagram




technical specification

Style 6EC218S
ConductorMaterialTinned copper+Nylon
Specification19/0.08TC+250D Nylon
 InsulationMaterialPP
Nom.Thickness0.19
Nom.O.D.ø0.80士0.05
ColourWhite/Green/Black/Red/Brown/Blue/Purple/Gray/Orange/Yellow/Red and White/Yellow and White/Green and White/Blue and White/Brown and White/Black and White/Purple and White/Orange and White
 FillerMaterialContton Thread
 ShieldMaterialTinned copper
Specification120士5/0.10TC
Coverage>90%
 JacketMaterialTPU (5040)
Nom.Thickness1.4
Nom.O.D.ø7.0士0.15
ColourGray(7Q77)
