3 lead ECG Cable Flat Low Noise ecg cable-EC203S-002

This 3 lead ecg cable has the following structure advantages to assure its performance perfectly meet EC 53 standard,specially the requirement for low noise

1)Flat ribbon consists of 3 single ecg cable with individual out jacket and shield,which avoid any relative movement between insulations.So its noise performance is as good as single lead ecg leadwires.This is an obvious advantage of flat ribbon ecg cable over round ecg cable .

2)The Conductor using tinned copper.which make the stripping of insulation become easier. In some cases,ecg cable assembly manufacture use Tinned Tinsel Conductor or Silver plated Tinsel conductor to increase the friction between conductors and insulations to decrease triboelectric noise;however,it is very hard to strip and destroy the conductor

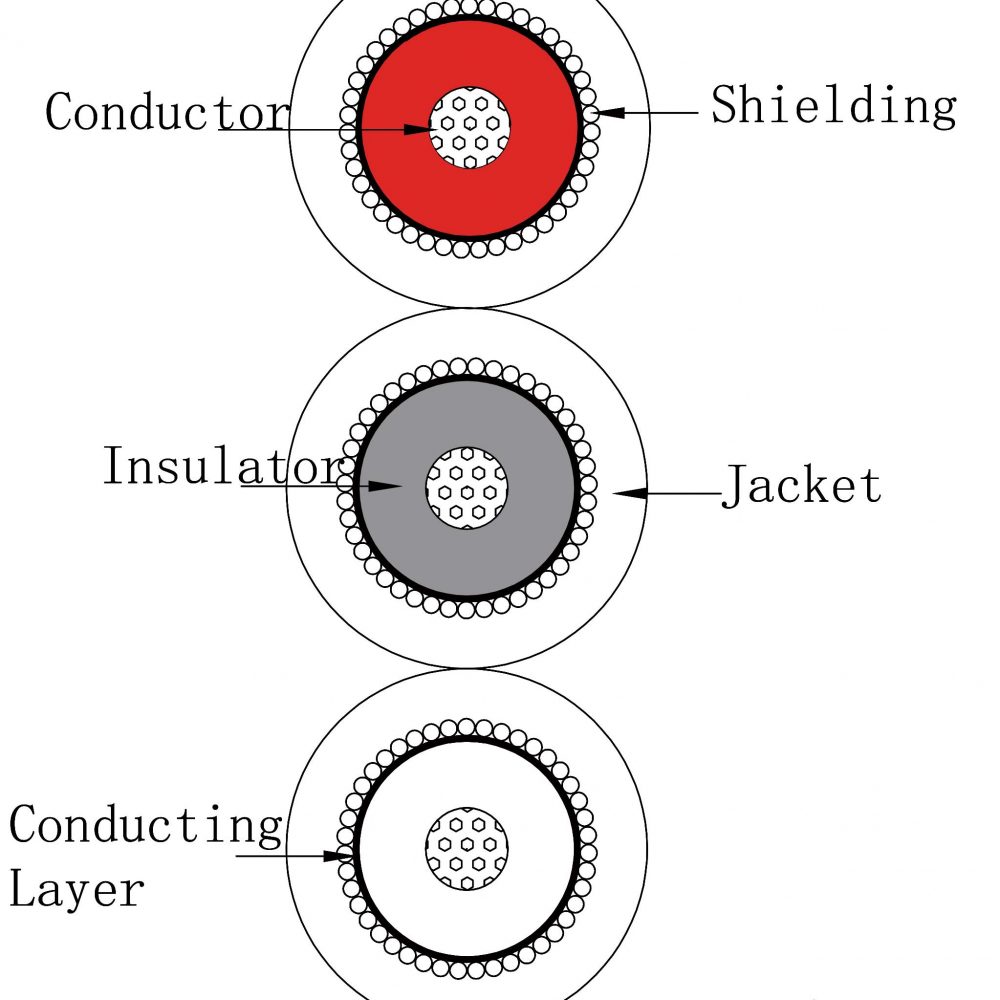

3 lead Flat ECG cable-Cutting diagram





technical specification

ModelEC205S-003
ConductorMaterialTinned copper
Specification19/0.10tC
InsulationMaterial3015PP
Nom.Thickness0.19
Nom.O.D.ø1.00士0.05
ColourWhite/Red/Gray
Conducting LayerMaterialSemiconductive PVC
Nom.Thickness0.075
Specificationø1.15士0.05
ColourBlack
ShieldMaterialTinned copper
Specification41士3/0.08TC
Coverage>90%
JacketMaterialPVC (709309)
Nom.Thickness0.27
Nom.O.D.ø2.00士0.10/6.2士0.3
ColourWhite
